VGA + Laminate
Vacuum glazing combined with laminated glass, with a published acoustic rating of Rw 42 dB.
VGA Optimum
More insulation.
More control.
Vacuum glass combined with laminated or insulated glass configurations for projects with specific performance and profile requirements.
Vacuum glazing. A specification shaped around your project.
VGA + IG
Vacuum glazing combined with an insulated glass configuration. Ask VGA for the performance and profile options for your project.
VGA++
A combination of vacuum, laminated and insulated glass, with a published acoustic rating of Rw 45 dB.
Technical information
The details that matter.
Selected figures from VGA product material. The final specification depends on your project and the glass configuration.
VGA Optimum
- VGA + Laminate · acoustic
- Rw 42 dB
- VGA++ · acoustic
- Rw 45 dB
- Available configurations
- VGA + Laminate, VGA + IG, VGA++
- Glass
- Toughened glazing
- Primary application
- Enhanced insulation and acoustic control
Before you specify
Technical documents and guidance Acoustic ratings relate to the named glass configurations, not every Optimum product or complete window. A separate rating for VGA + IG was not supplied. Confirm the build-up, thickness, test basis and required performance with VGA.
Glass figures are not whole-window ratings. Final suitability, test documentation and any project approvals need to be confirmed.
Where it fits
More options for a considered specification.
Optimum gives projects a choice of glass combinations where insulation, acoustics and overall thickness need to be considered together. The appropriate configuration depends on the frame, performance brief and application.
- High-performance housing
- Projects requiring enhanced insulation
- Spaces with specific acoustic requirements
- Projects requiring tailored glazing thickness
A profile to suit the project
Optimum was developed for projects needing more depth than a slim vacuum unit, including demanding housing briefs. The original VGA + Laminate description positions it between a laminated profile and a conventional double-glazed profile; exact thickness depends on the combination.
VGA + IG adds an insulated glass configuration, while VGA++ combines vacuum, laminated and insulated glass. Discuss the required profile with VGA rather than treating the illustrations as dimensioned construction drawings.
Appearance, construction and care
The published improved vacuum component omits the evacuation plug and has a linear getter near the perimeter. Confirm the current component and coating within the complete Optimum combination; added layers can change its appearance and reflection.
Obtain the installation and maintenance instructions for the complete assembly. Neither an insulation claim nor the reference image labelled “Anti-condensation” guarantees that a project will be free of condensation or meet a particular building performance target.
Using the reference figures
The original charts below are retained as published. They are reference material, not a substitute for the current specification or a test report for the selected glass and complete window. Confirm availability, construction and warranty with VGA before ordering.
Historical comparisons of energy efficiency, noise, light transmission and service life do not establish that one product is best in every application. Savings and installed performance depend on the project.
Construction diagrams and comparison charts · reference material
These original diagrams include historical configurations and comparisons. Some figures differ from the current range information. Read each caption and confirm the selected product’s documentation before specification.

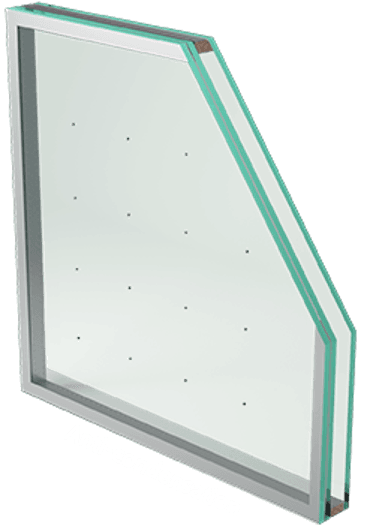

VGA + Laminate construction · reference

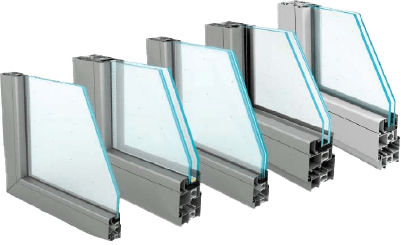

Glazing profile options · reference

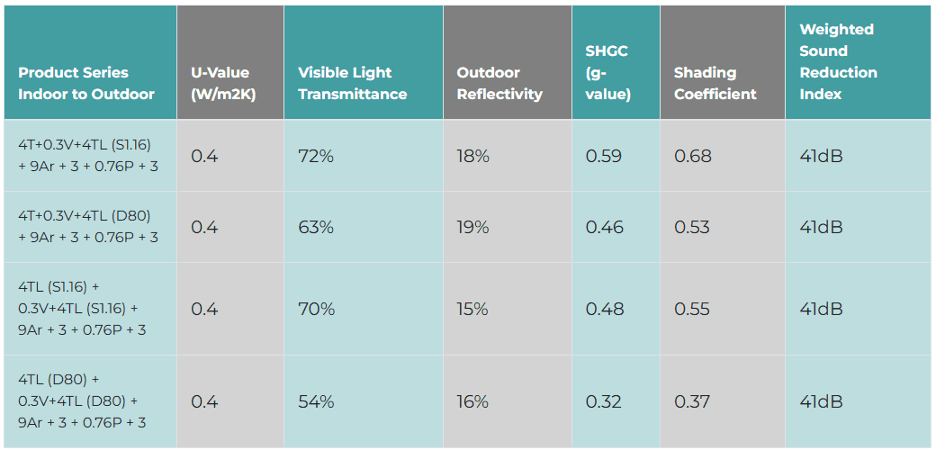

Optimum combinations · reference table
